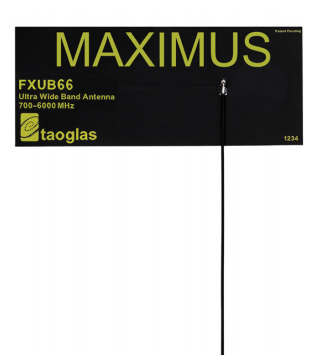

FXUB66.07.0150C

特征：

频率: 600 MHz-6 GHz

协议 - 蓝牙、BLE - 802.15.1: Bluetooth, BLE

协议 - 蜂窝、Nbiot、LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

协议 - GPS、GLONASS: Galileo, GPS

协议 - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

协议 - ANT、Thread、Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)

增益: 2.7 dBi, 3.8 dBi, 5 dBi, 5 dBi, 5 dBi, 3.5 dBi, 3.8 dBi, 6.4 dBi, 5.5 dBi

阻抗: 50 Ohms

功率额定值: 5 W

工作温度: -40℃-85℃

中心频率: 700 MHz, 850 MHz, 900 MHz, 1400 MHz, 1575.42 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2600 MHz, 3500 MHz, 5400 MHz

长度: 120.4 mm

宽度: 50.4 mm

高度: 0.2 mm
