MultiTech Conduit® AP 300系列（MTCAP3系列）
专为室内使用和工业应用而设计，例如智能建筑、零售场所、农业环境以及其他对可靠性和安全的远距离数据通信有基本要求的部署场景。
MultiTech Conduit® 300 系列可编程网关采用 mPower™ Edge Intelligence，可实现简化的边缘到云编排、管理和分析，以及高性能、安全的处理器，以支持 Docker 和容器，实现轻松编程并与领先的物联网软件平台内置兼容性。mPower Edge Intelligence 包含许多安全功能，包括签名固件验证、增强的防火墙和 VPN 设置、安全身份验证等。Conduit 300 网关可以灵活地用作具有以太网或蜂窝数据回程的可编程网关，还可以包括 LoRaWAN mCard，能够支持数千个连接到远程传感器和设备的 MultiTech mDot 和 xDot 远程射频模块。额外的有线连接选项和灵活的安装选项允许针对任何 IIOT 应用定制网关。
优势
- 高安全性硬件
- 使用高度安全的
- 可编程网关
- 简化的边缘到云管理和分析
- 网关和终端节点之间的同步通信
- 获准与全球 LoRa 通道计划配合使用
- 经济高效地确定远程资产的位置
- 易于部署，提供多种回程选项
- 多种电源选项支持不同的用例和应用
- 基于云的设备管理平台，用于无线网络诊断和配置
特性
- 高性能、安全的处理器支持工业级 IoT 应用
- 安全启动、调试安全性、可信执行环境、签名固件验证、增强的防火墙和 VPN 设置
- 可选的 MultiTech mCard 网关附件卡支持 868 MHz 和 915 MHz LoRa 频段和其他有线接口
- 用于 LoRaWAN 数据包时间戳和地理定位的 GNSS 模块
- 以太网回程，可选 4G-LTE 蜂窝和 Wi-Fi 选项
- 提供 POE 和 DC 电源选项
目标应用
Conduit AP 专为室内使用和工业应用而设计，例如智能建筑、零售场所、农业环境以及其他对可靠性和安全的远距离数据通信有基本要求的部署场景。
MTCAP3 订货信息
| Ordering Part Number | Description | Cellular Region |
|---|---|---|
| MTCAP3-EN-A23UEA-LWM.R1 | Ethernet-only mPower programmable access point with LoRa 915 MHz and external LoRa antenna |
Australia Canada New Zealand United States |
| MTCAP3-EN-A23UEA-DWM.R1 | Ethernet-only mPower programmable access point with LoRa 915 MHz | |
| MTCAP3-LNA7D-A23UEA-LUM.R1 | LTE Cat 4 mPower programmable access point with LoRa 915 MHz and external LoRa antenna |
Canada United States |
| MTCAP3-LNA7D-A23UEA-DUM.R1 | LTE Cat 4 mPower programmable access point with LoRa 915 MHz | |
| MTCAP3- L4G2D-A23UEA-LUM-BAC | LTE Cat 4 mPower/BACnet programmable access point with LoRa 915 MHz and external LoRa antenna | |
| MTCAP3-L4G2D-A23UEA-DUM | LTE Cat 4 mPower programmable access point with LoRa 915 MHz and internal LoRa antenna |
Australia Canada New Zealand European Union United Kingdom United States |
| MTCAP3-L4G2D-A23UEA-LUM | LTE Cat 4 mPower programmable access point with LoRa 915 MHz and external LoRa antenna | |
| MTCAP3-L4G2D-A23EEA-DEM | LTE Cat 4 mPower programmable access point with LoRa 868 MHz and internal LoRa antenna | |
| MTCAP3-L4G2D-A23EEA-LEM | LTE Cat 4 mPower programmable access point with LoRa 868 MHz and external LoRa antenna | |
| MTCAP3-L4G2D-A23EEA-LEM-BAC | LTE Cat 4 mPower/BACnet programmable access point with LoRa 868 MHz and external LoRa antenna |
European Union United Kingdom |
| MTCAP3-LEU7-A23EEA-LEM.R1 | LTE Cat 4 mPower programmable access point with LoRa 868 MHz and external LoRa antenna | |
| MTCAP3-LEU7-A23EEA-DEM.R1 | LTE Cat 4 mPower programmable access point with LoRa 868 MHz | |
| MTCAP3-EN-A23EEA-LEM.R1 | Ethernet-only mPower programmable access point with LoRa 868 MHz and external LoRa antenna | |
| MTCAP3-EN-A23EEA-DEM.R1 | Ethernet-only mPower programmable access point with LoRa 868 MHz |
规格说明
915 MHz Models的规格说明
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.4 specifications |
| LTE FDD Cat 4, 3GPP release 11 compliant | |
| WCDMA/GSM fallback | |
| LoRa radio frequency | 915 MHz ISM band |
| Cell radio frequency bands (MHz) for L4G2D | 4G LTE FDD (Europe): B3 (1800), B7 (2600), B8 (900), B20 (800) |
| 2G (Europe fallback): B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD (AT&T): B2 (1900), B4 (AWS1700), B12 (700), B14 (700) | |
| 4G LTE FDD (Verizon): B2 (1900), B4 (AWS1700), B13 (700) | |
| 4G LTE FDD (Anterix): B8‑US (900) | |
| 4G LTE FDD (APAC): B1 (2100), B9 (1800), B18 (800), B19 (850), B26 (850), B28 (700) | |
| 3G: B1 (2100), B2 (1900), B4 (AWS1700), B5 (850), B6, B8 (900), B19 (850) | |
| 2G: B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD bands: B25 (1900) | |
| Cell radio frequency bands (MHz) for LNA7D | LTE FDD: B2 (1900), B4 (AWS1700), B5 (850), B12 (700), B13 (700), B25 (1900), B26 (850) |
| WCDMA: B2 (1900), B4 (AWS1700), B5 (850) | |
| Physical Description | |

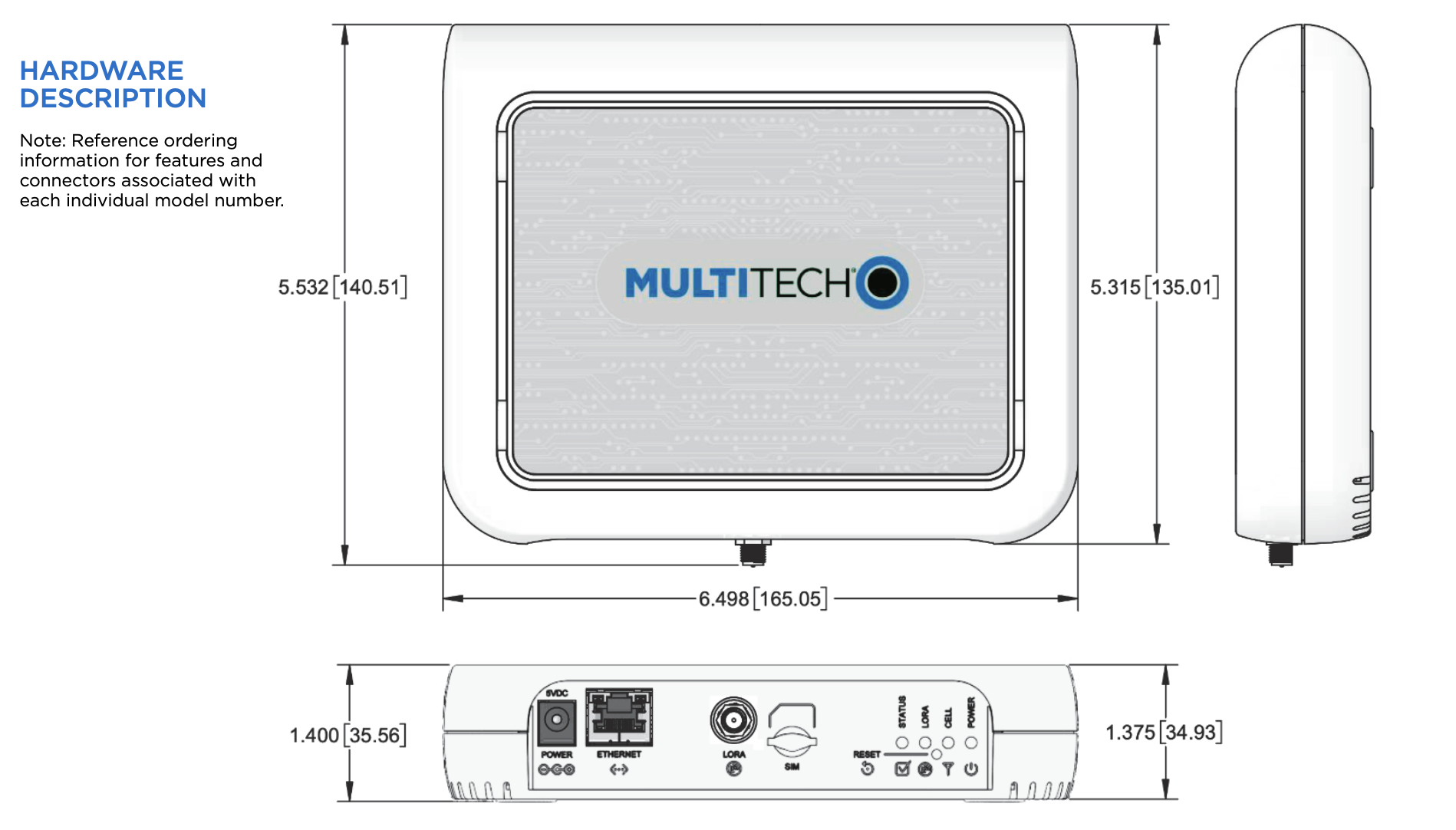

| Dimensions | 165 (6.5) × 135 (5.3) × 36 (1.4) mm (in) |
| Weight | 0.11 kg (0.24 lb) without antenna |
| Chassis | PC-ABS |
| Power Requirements | |
| Operating voltage | 5 VDC @ 2.5A |
| AC power requirement | Ethernet active, cellular connection established, LoRa RX: 2W |
| Ethernet active, cellular connection at maximum transmit power, LoRa RX+TX: 5W | |
| LoRa tx power | Australia and North America: 29.1 dBm maximum EIRP (includes external LoRa antenna) |
| Japan: 14 dBm maximum EIRP (includes external LoRa antenna) | |
| New Zealand: 29.9 dBm maximum EIRP (includes external LoRa antenna) | |
| Environment | |
| Operating temperature1 | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage temperature | -40 °C to 85 °C (−40 °F to 185 °F) |
| Humidity | 20%-90%, RH non-condensing |
| Certifications | |
| EMC and radio compliance | FCC Part 15 Class B |
| FCC Part 15.247 (LoRa) | |
| FCC 22H, 24E, 27, 90 | |
| RSS130,RSS133, RSS139 | |
| RSS210 (LoRa) | |
| ASNZ 4268 | |
| Safety compliance | UL 62368-1 2nd Edition |
| UL / IEC 62368-1 | |
868 MHz Models的规格说明
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.4 specifications |
| LTE FDD Cat 4, 3GPP release 11 compliant (LEU7 models only) | |
| WCDMA/GSM fallback | |
| LoRa radio frequency | 868 MHz ISM |
| Cell radio frequency bands (MHz) for L4G2D | 4G LTE FDD (Europe): B3 (1800), B7 (2600), B8 (900), B20 (800) |
| 2G (Europe fallback): B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD (AT&T): B2 (1900), B4 (AWS1700), B12 (700), B14 (700) | |
| 4G LTE FDD (Verizon): B2 (1900), B4 (AWS1700), B13 (700) | |
| 4G LTE FDD (Anterix): B8‑US (900) | |
| 4G LTE FDD (APAC): B1 (2100), B9 (1800), B18 (800), B19 (850), B26 (850), B28 (700) | |
| 3G: B1 (2100), B2 (1900), B4 (AWS1700), B5 (850), B6, B8 (900), B19 (850) | |
| 2G: B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD bands: B25 (1900) | |
| Cell radio frequency bands (MHz) for LEU7 | LTE FDD: B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28A (700) |
| WCDMA: B1 (2100), B8 (900) | |
| GSM: B3 (1800), B8 (900) | |
| Physical Description | |
| Dimensions | 165 (6.5) × 135 (5.3) × 36 (1.4) mm (in) |
| Weight | 0.11 kg (0.24 lb) without antenna |
| Chassis | PC-ABS |
| Power Requirements | |
| Operating voltage | 5 VDC @ 2.5A |
| AC power requirement | Ethernet active, cellular connection established, LoRa RX: 2W |
| Ethernet active, cellular connection at maximum transmit power, LoRa RX+TX: 5W | |
| LoRa tx power | Internal antenna models: 12.3–24.8 dBm maximum ERP; maximum ERP is 12.3 dBm for whole band, except 24.8 dBm at 869.525 MHz |
| External antenna models: 13.0–25.5 dBm maximum ERP; maximum ERP is 13.0 dBm for whole band, except 25.5 dBm at 869.525 MHz | |
| Environment | |
| Operating temperature3 | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage temperature | -40 °C to 85 °C (−40 °F to 185 °F) |
| Humidity | 20%-90% RH, non-condensing |
| Certifications | |
| EMC and radio compliance | CE Mark, RED (EU) |
| EN 300 220-1 / EN 301 489-1 / EN 301 908-1 (see Declaration of Conformity for details) | |
| Safety compliance | UL/IEC 62368-1 |
mPower™ Edge Intelligence
mPower™ Edge Intelligence 是一款嵌入式软件产品，旨在为可扩展的工业物联网（IIoT）解决方案提供可编程性、网络灵活性、增强的安全性和可管理性。mPower 代表了成熟的 MultiTech 智能路由器和网关固件平台的整合与演进。
mPower Edge Intelligence 简化了与各种主流上游物联网平台的集成，以优化边缘到云端的数据管理和分析，同时还提供可编程性和处理能力，以便在网络边缘执行关键任务，从而减少延迟、控制网络和云服务成本，并确保核心功能 —— 即便在网络连接可能不可用的情况下也是如此。为响应不断变化的客户安全需求，mPower Edge Intelligence 融入了一系列新的安全功能，包括签名固件验证、安全启动、新的云管理、自定义应用程序的可编程性、DI/DO 等。
1 UL listed at 40 °C, limited by AC power supply. Product has been tested to 70 °C excluding power supply.
2 ERP = EIRP − 2.15 dB
3 UL listed at 40 °C, limited by AC power supply. Product has been tested to 70 °C excluding power supply.
